Micro 3.0 Pro Dual Beam Set

$1,049.95

When you combine the powerful Sea Dragon 3000SF Pro Dual Beam with the Micro 3.0 camera, you’ve created the perfect duo. The bright yet also warm and color friendly Sea Dragon has a wide and even beam angle that covers the shooting angle of the Micro 3.0 camera well. The set includes a Flex-Connect single tray and grip, and allows for easy expansion into more lighting options.

The compact Sea Dragon 3000SF Pro Dual Beam Photo-Video light is the perfect all-around photo, video, and dive light. With a simple one-button push, you can switch from the wide 120° beam to a narrow 1500 lumen 15° spot beam. For imaging, the spot beam offers many creative opportunities such as to create a narrowly focused snoot or stage spotlight effect. The spot beam also serves as a primary or secondary dive light for most diving applications.

Unboxing the Micro 3.0

Great Pictures Made Easy with the Micro 3.0 – Part I

Great Pictures Made Easy with the Micro 3.0 – Part II

Micro Wide Angle Dome Lens

Extended Warranty

Extended Warranty Information

How to buy: SeaLife has a US and international dealer network, we encourage you to contact your nearest stocking SeaLife dealer. Your nearby SeaLife retailer can help you make the right selection and support your SeaLife equipment with accessories and servicing if needed. Please see our dealer locator here. We have dealers and distributors worldwide; if you’re not able to find a SeaLife merchant near you, you may purchase from us directly.

Description
Features
Specifications
What's Included
Micro 3.0 vs. Micro 2.0
Micro 3.0 Photo Gallery
FAQ

The SeaLife Micro 3.0 Camera is the latest and third generation of the popular permanently-sealed Micro camera series. The camera is leak-proof with no O-rings to lube or maintain, so there is never a worry about flooding the camera. Like its forerunners, the Micro 3.0 features an ergonomic, compact design with easy-to-use controls and menus. The Micro 3.0 camera offers impressive still images with its large SONY® 16MP CMOS sensor, and vibrant 4K Ultra HD video. You can even shoot 8MP stills while you’re recording video. Since it’s permanently sealed, the Micro 3.0 has a large 3-plus hour battery good for a full day of diving and built in 64gb of memory to store thousands of photos and hours of video.

The Sea Dragon 3000SF Pro Dual Beam’s large COB LED delivers 3000 lumens in an even 120° wide beam. The light offers an impressive 90 CRI (color rendering index) with a proprietary COB LED array that replicates natural sunlight (A CRI of 100 would be just like natural sunlight). The 15° spot beam has a CRI of 70. The light also has two 88°, 180 lumen red LEDs for night diving.

The camera’s ease of use starts with the three wide “Piano key” buttons that are easy to locate and control, even with dive gloves on.  The intuitive Micro 3.0’s Easy Setup feature quickly guides you through the correct settings based on the shooting environment, depth and lighting accessories being used.

Micro 3.0 users can fine-tune their underwater images with a new manual white balance adjustment and the ability to capture images in RAW format, for those that want to edit their images later.

The built-in wide angle 100° lens allows the diver to get close to the subjects while still keeping everything in the picture.

Lighting is easy, use the Micro 3.0 with Sea Dragon underwater LED photo/video lights (or other constant LED light sources). There’s no flash or cable to sync to an external strobe. Simply turn your light on and adjust the intensity based on the subject, conditions and distance.

The Micro 3.0 offers WiFi sharing ability, so you can wirelessly preview, download and share pictures & videos to a smart phone or tablet with the free SeaLife Micro 3+ app available at Google Play or Apple App stores.

The large 260K high-resolution 2.4” TFT color LCD display makes capturing and reviewing photos and video easy on the small camera.

For the latest app and technical updates, visit our technical updates and troubleshooting page.

Features

Micro 3.0 Features

16 megapixel Sony IMX083 CMOS 1/2.3” image sensor

iCatch V50 DSP processor

4K Ultra HD Video @ 30fps and 1080p HD video @ 120 fps (Super Slo-Mo)

260K hi-res 2.4” TFT color LCD

Permanently sealed – No waterproof door or O-rings to maintain

Ultra-fast 0.1 second shutter response – Virtually no shutter lag

Easy Setup with five Land & Sea scene modes:

Land Auto – Above water pictures and videos

Land Sports/Action – Above water action scene with continuous burst shooting (10 JPEG pictures in 1 sec)

Dive – Adds color correction while diving in deeper water

Snorkel – Adds color correction while snorkeling or diving in shallow water

Underwater Light – Underwater pictures and videos with Photo-Video light

Three built-in digital underwater color correction filters (white balance modes):

Underwater Deep for deeper tropical, blue/cyan water

Underwater Green for colder, green/emerald water

Underwater Shallow for shallow tropical, blue/cyan water

Manual White Balance Adjustment to customize underwater color correction to your specific depth and water conditions

Continuous Burst Shooting – shoots 10 high resolution 16MP JPEG pictures in 1 second

RAW image format – Hi-res, uncompressed .DNG image files for virtually unlimited photo editing options

100° Wide angle lens – 7 element, fully multi-coated, aspheric optical lens

Stabilization – Electronic stabilization reduces vibration and shake for smooth video recording

“Piano Key” button controls for easy operation, even with dive gloves on

Wireless –  Preview, download and share pictures/videos to smart phone or tablet with free Micro 3+ app

64GB internal memory holds 10,000 16mp pictures, 140 minutes 4K-30fps video, 205 minutes 1080p-60fps, or 560 minutes 1080p-30fps HD video

Waterproof to 200ft / 60m

Picture in Video – capture 8mp still images while recording 4K video

Compact design for easy handling and lightweight travel

Fully rubber-armored and impact resistant

Focus distance from 15” (38cm) to infinity

Time lapse shooting at set time intervals – Saves as video file or series of still images

Upside-down shooting mode – When mounting camera upside down, pictures and videos are saved upright

Shortcut mode – Push and hold menu button to quickly access a specified menu setting

2000 mAh / 3.7V / 7.4Wh internal lithium ion rechargeable battery for 3+ hours video or 1000+ images

External power mode – Connect and operate camera with external power supply (land only)

LED status light – Confirms charging and transfer status

Soft textured rubber grip design for sure grip



Sea Dragon Pro Dual Beam Features

Powerful 3000 lumen wide beam COB LED (BridgeLux V18 COB LED) and 1500 lumen narrow beam LED (Luminus SST-40-W LED)

90 Color Rendering Index (CRI) that mimics natural daylight

One button control for easy operation. One button to power light on/off and select brightness

6 Light modes: Flood 100%, 50%, 25%; Spot 100%, 50%; One red light mode

60-minute run time at full power

Constant brightness – Regulated circuitry so light won’t dim with battery power

Easy to expand with Flex-Connect™ trays, grip and flex arms

Quick-release button to detach light and aim in crevices and hard to reach areas

120° wide beam evenly illuminates the subject with no hot spots (90° underwater)

15° narrow beam for long reach and creative snoot effect (11° underwater)

Emergency mode emits blinking light or SOS signal to alert others of distress. Activated by holding down power button for 5 seconds from power off state

Depth rated to 330 ft (100m)

Corrosion-proof metal light head for heat dispersion and durability

Removable 25Wh 3400 mAh Li-Ion battery w/ charger and international plug adapters included

Waterproof battery compartment protects internal electronics even if light accidently floods

Includes standard single tray, grip and compact travel case

Mounting tray with universal ¼-20 screw fits all SeaLife and other brands

Specifications

Micro 3.0 Specifications

Free App Name: SeaLife Micro 3+ in App store; SeaLife Micro 3+ Android App in Play store

Image Sensor 16 mega pixel SONY IMX083 1/2.3” CMOS sensor
Image Resolution/Sizes 16mp (4608×3456   4:3), 14mp (4608×3072  3:2), 12mp (4608×2592 16:9), 9mp (3456×2592  4:3), 7mp (3456×1944  16:9), 4mp (2304×1728  4:3), 3mp (2304×1296  16:9), 2mp (1920×1080  16:9)
Picture File Format JPEG (.jpg) and RAW (.dng)
Video Resolution/Sizes 4K at 30fps (frames per second), 1080p at 120 fps, 1080p at 60 fps, 1080p at 30 fps, 720p at 120fps, 720p at 60fps, 720p at 30fps, 480p at 120fps, 480p at 60fps, 480p at 30fps
Video File Format MPEG4 h.264 (.mp4)
Audio Microphone: Yes (mono)
Speaker: Yes (mono)
Audio Format ACC (video/ audio compressed together)
Lens Aperture F2.8
Lens Optics 7 element, fully multi-coated, aspheric optical lens
Focal Length 3.37mm (35mm film equivalent = 19mm)
Focus Type Fixed-focus lens
Focus Range 15” to Infinity (38cm to infinity)
Field of View 100° diagonal shooting angle
Shutter Speed 1/25 to 1/2000 second
Scene Modes Land Auto, Land Sports/Action, Dive, Snorkel and Ext Light mode (when using photo video light accessory)
Capture Modes Single, Continuous (shoots 10 16MP pictures in the 1st second and 2 pictures thereafter), Time Lapse (Saves as .mp4 file or as series of individual still images depending on setting), Burst (shoots ten 16MP JPEG or three JPEG+RAW pictures in 1 second) and AEB (Auto Exposure Bracketing)
White Balance Modes Auto, Manual, Underwater Deep, Underwater Shallow, Underwater Green, Daylight, Cloudy
ISO Auto, 100, 200, 400, 800, 1600, 3200
Exposure Value (EV) EV adjustable from -2.0 to +2.0 in 0.3 increments
Quality Super Fine, Fine and Standard
Sharpness Standard, Hard and Soft
Metering Center, Average and Spot
Color Standard, Vivid, Black/White, Sepia and Negative
Self Timer 10 sec, 3 sec and 10+3 sec
LCD 2.4” 260K TFT LCD color display
Status LED Blinking red = charging, Solid red = fully charged
Solid green = Data connection made
Blinking green = Data connection not successful (Display will read: Clean USB pins & adapter. Use only original USB cable.)
Memory (internal) 64GB internal memory
NAND Flash 1GB
USB Format 2.0
USB Cable Type USB-A to Micro-B, 2ft (60cm)
PC Connection PC: Windows XP / 7 and up, MAC: OS 10.8 and up
Language Support On-Screen Display; English, German, French, Spanish, Italian, Dutch, Turkish, Russian, simplified Chinese, traditional Chinese. Printed manual;  English. Online manual; German, French, Spanish, Italian, Dutch
Battery 2000 mAh, 3.7v, 7.4Wh Internal Li-ion battery
Battery Life 3+ hours when shooting pictures or recording 1080p-30fps video
2+ hours when RAW+JPEG images or recording 4K-30fps video
External Power Camera may be connected to 5v external power supply for full functionality
Note: External Power is only available on land above water
Charging Use any 5V USB wall charger (not included)
Includes USB cable (Type A to Micro-b) and 5-pin USB adapter
4 hour charging time with 1.5A+ wall charger
App SeaLife Micro 3+ app available for Android at Google Play store and iOS phone/tablet at Apple App Store, app supports phone/tablets running current or previous version operating system
WiFi Wi-Fi 802.11b/g/n (Approximate range = 100ft / 30m)
System Settings WiFi on/off, System Reset, Format, Date/Time, Memory Available, Mic off/low/med/high, Sound off/low/high, Quick View on/off, Language, System NTSC/PAL, Light Frequency 50Hz/60Hz, Date Stamp on/off, Auto Off/3min/5min, Upside-down shooting, Shortcut, SSID and FW version
Waterproof Individually depth tested to 200’ (60 m)
Altitude Operational to 25,000ft (7600m) above sea level
Shockproof 3ft / 1m drop test
Buoyancy Negative; -50 grams underwater
Operating Temperature Land: 23°F to 122°F (-5°C to 50°C); Underwater: +33°F to +110°F (0.5 °C to 44°C)
Storage Temperature -20°F to +140°F (-29°C to +60°C)
Tripod/Tray Mount Standard ¼-20 UNC tripod threads
Certification CE, ROHS, FCC, IC
Weight 11.6 oz. (329g)
Dimensions 2.1” x 2.9” x 4.2” (5.4cm x 7.4cm x 10.7cm)
Packaged Weight 2lbs (0.9kg)
Packaged Dimensions 3.7” x 5.1” x 5.5” (9.5cm x 13.0cm x 14.0cm)
Warranty Period 1 year limited warranty for manufacturing defects
Country of Origin Designed/Engineered in USA, Made in China

Sea Dragon Pro Dual Beam Specifications

Body Material Anodized aluminum light head with fiber-reinforced polycarbonate body
Light Source/Bulb Type 1x wide beam COB LED (BridgeLux V18 COB LED Array COB)
1x narrow beam LED (Luminus SST-40-W LED)
2x red beam LED (Luminus SST-10-R LED)
Brightness White light: 3000 lumens (maintained throughout run time at full power)
Red light:  180 lumens
Brightness Control/Light Modes 100% wide → 50% wide → 25% wide → 100% spot → 50% spot → Red [repeat]
Color Temperature 5000K for COB wide beam LED
6000K for narrow beam LED
Color Rendering Index* 90 for COB wide beam LED
70 for narrow beam LED
Beam Angle White Light: 120° on land / 90° underwater
Red light: 88° on land / 66° underwater
Battery Lithium Ion 7.4V, 3400 mAh, 25Wh (included)
Battery Charge Time 170 minutes
Run Time Wide Beam: 60 min at full power, 120 min at 50% power, 240 min at 25% power
Narrow Beam: 80 min at full power, 160 min at 50% power
Red beam: 240 min
Depth Tested to 330 feet/100 meters
Dimensions 8.5″ x 9.5″ x 2.3″ (22cm x 24cm x 6cm), fully assembled with light head, battery, grip and tray
5.1″ x 2.2″ x 4.1″ (13cm x 5.6cm x 10.4cm), head only
Weight 15.8 ounces (449 grams) light head w/battery installed
Bulb Life 35,000 hours
O-ring Dual silicone O-rings (lube included)
Buoyancy Negative; -111 grams underwater
Country of Origin Designed/Engineered in USA, Made in China

*CRI is a measure of a light source’s ability to show object colors “realistically” or “naturally” compared to daylight, which has a CRI of 100 and represents the maximum value.

The beam angles for the Sea Dragon lights are shown as the true, tested “in-air” (above water) beam angle. Underwater, due to light refraction, the angle tightens to approximately 33% less.

Avoid using this Sea Dragon light above water for prolonged periods of time. The light is designed for underwater use and water is needed to displace heat. The metal light head at full power will reach temperature of about 140F (60C) degrees within a few minutes, which may cause burning if touched. A thermal sensor will automatically dim the light if internal temperatures reaches 150F (65C) degrees. Immediately turn off light if any parts of the light become hot to the touch.

What's Included

Micro 3.0 camera 64GB WiFi
Wrist strap
USB Micro-B adapter
USB cable type USB-A to Micro-B; 2ft/60cm
Neoprene camera pouch
Lens Cap
Sea Dragon 3000SF Pro Dual Beam Photo-Video Light head
Flex-Connect single tray
Flex-Connect grip
25Wh 3400mAh Li-ion rechargeable battery
AC Power Adapter
Charging tray
Adapter for GoPro® Cameras
Int’l plug adapters – US/EU/UK/AU
Spare O-rings, O-ring lubricant, O-ring removal tool

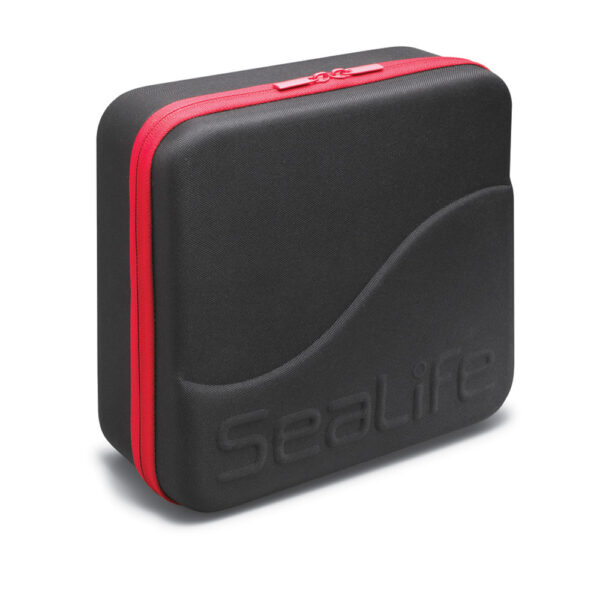

Sea Dragon Case

Micro 3.0 vs. Micro 2.0

View the complete SeaLife Image Gallery and SeaLife Video Gallery.
